Aluminum Spacer Processing Hot Melt Butyl Extruder Silicone Spray Machine

Name: Aluminum Spacer Processing Hot Melt Butyl Extruder Silicone Spray Machine
Brand: Jinan Lijiang Glass Machinery
Price: 1 USD

Quality Aluminum Spacer Processing Hot Melt Butyl Extruder Silicone Spray Machine wholesale

Brand Name : Jinan Lijiang Glass Machinery

Model Number : LJTB01 Butyl Extruder Machine

Certification : CE & ISO9000

Place of Origin : China

MOQ : 1 set

Price : Discussible

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : 5-8 working days

Packaging Details : Wooden Cases Package and Container Transfer

Voltage : 380V 50HZ

After-sales service provided : Engineers available to service machinery overseas

Weight : 500kg

Product name : Insulating Glass Making Machine Butyl Extruder Machine

Warranty : 12 Months

Squeeze pressure : 12~16Mpa

Conveying speed : 0-30m/min

Extruding pressure : 110-160℃

Contact Now

LIJIANG GLASS-FOR WORLD PROCESSING GLASS MANUFACTURE SERVICE

Aluminum Spacer Processing Hot Melt Butyl Extruder Silicone Spray Machine

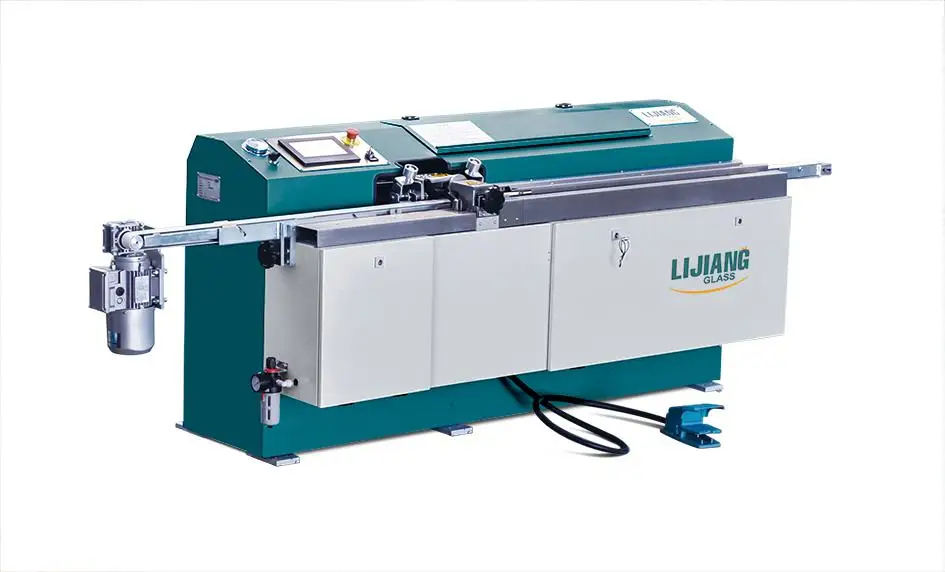

Butyl Extruder Machine LJTB 01

The type of LJTB01 butyl extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. This equipment
 use large electrical control panel which makes the operation more easier. The conveyor of aluminum is controlled by frequency
 converter, and the speed can be adjusted from 0m/min to 47m/min, which has the fastest speed in China. It is very popular with
 energy-saving. Its squeezing system adopts pneumatic and hydraulic supercharging system, which makes the squeezing pressure more stable. orking mode.

Butyl Extruder Machine LJTB 01

The dispensing cylinder uses vertical rotary support system and it makes the refill of butyl easier. It can prolong the life of squeezing system and set the heating time in 24 hours with electricity and air pressure. The distance of squeezing head can be adjusted automatically according to different aluminum spacer. The machine has reached the worldwide technology with the characteristic of complete function and stable working mode.

Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	4-30mm
Speed	0-47m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5KW, 50HZ
Dimension	2600×680×1100mm(L×W×H)
Weight	650kg

►Germany Siemens spares

►Germany Maximator Cylinder

Features

Filter out debris automatically through auto exhaust, keep spreading quickly and evenly.
Quickly speed of warming, improve work effect.
Adjustable coating speed, can up to 0-47m/min.
Can save about 40% materials, only 5g/m.
Extruder head height adjustment structure.
Automatic centering and clamping structure.
Stable temperature and it is convenient to adjust the sealing material automatically.

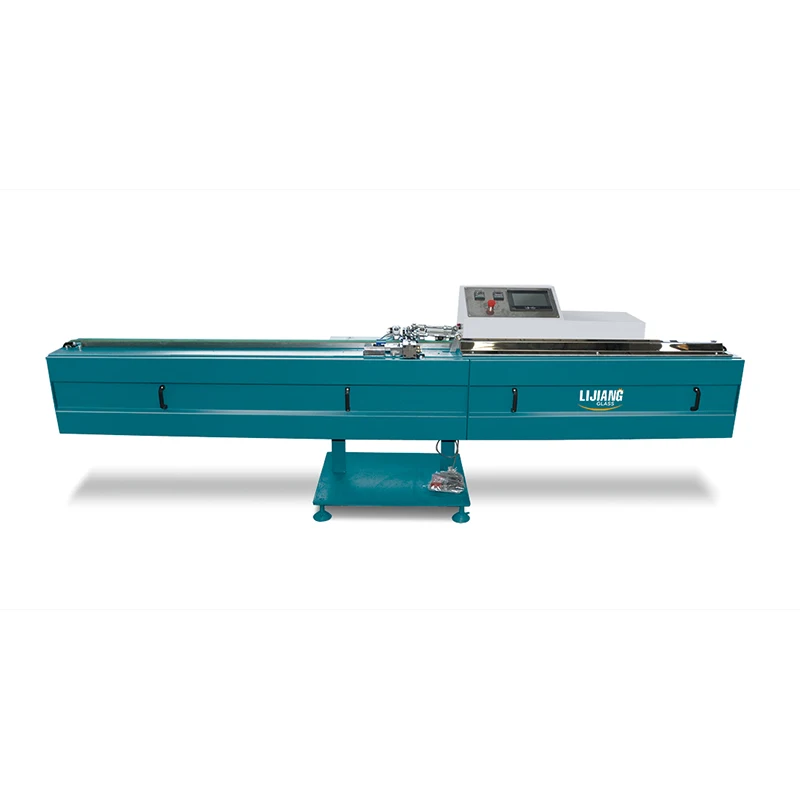

Butyl Extruder Machine LJTB 03

Main feature
 * PLC control system, touch screen interface
 * Frequency control system
 * Arc frame coating structure
 * Imported pneumatic and hydraulic supercharging system
 * Automatic centering and clamping structure
 * Loading capacity up to 14KG, saving time for feeding glue
 * Adopt five steps to control convey
 * Preheating function,glue cylinder limit function,alarm system
 * Covey and gluing mechanism adopts the latest design


Squeeze pressure	10-18MPa
Temperature	110~140℃
Aluminum spacer width	6A-27A
Speed	0-40m/min
Diameter of butyl cylinder	200mm
Air supply	0.4m³/min
Air pressure	≥0.6MPa
Total power	380V, 5KW,50HZ
Dimension	2600×680×1100mm(L×W×H)
weight	650kg
